板卷在熱軋過程中其表面易形成一層又脆又硬的氧化物，在進行冷軋加工之前， 必須去除帶卷表面的氧化物，這一工序通常由酸洗機組來完成。酸洗生產線是我 公司較為成熟的技術，目前我們可為客戶提供；推拉式酸洗生產線（即半連續式 酸洗線）和連續式酸洗生產線。

A layer of brittle and hard ferric oxide will form on the surface of the steel strip during the hot rolling,and the ferric oxide layer will affect the surface quality of the strip during cold rolling.Pickling process is applied for removing the ferric oxide.We are professional in this technology,and we can provide the following kinds of pickling lines,Push-pull Pickling Line (Semi-continuous Pickling Line)and Continuous Pickling Line.

推拉式酸洗生產線 Push-pull Pickling Line

推拉式酸洗生產線是一種半連續式生產線，具有設備簡單，適用帶鋼品種多、生 產消耗低、設備運行故障少等特點。該機組適于年產量為10-60萬噸的生產。

Push-pull Pickling is a semi-continuous production line. It is characteristic with lower consumption,easier operation and fewer malfunctions,moreover it can pickle many kinds of incoming material. The line can produce 100,000-600,000 tons strip annually.

設備配置 Features and applications

開卷機—九輥矯直機—切尾剪—鉚接機—前活套—預清洗段葉酸洗槽—沖洗槽— 熱風干燥機—后活套—對中機—圓盤剪（卷邊機）—張緊機—剪切機—涂油機— 卷取機

Pay off Reel—Nine roll Leveller—End Shear—Riveter—Entry Looper—Pre- rinsing Section—Pickling Tank—Rinsing Tank—Hot Air Drier—Exit Looper—Deflector—Disc Shear(with scrap coiler)—Bridle Roll—Shear—Oiler—Coiler

工藝參數Technical parameters

下表為年產 40 萬噸普通熱乳鋼帶推拉式酸洗生產線技術參數 Following is the data for Push-pull Pickling hot rolled strip with the annual yield of 400,000 tons

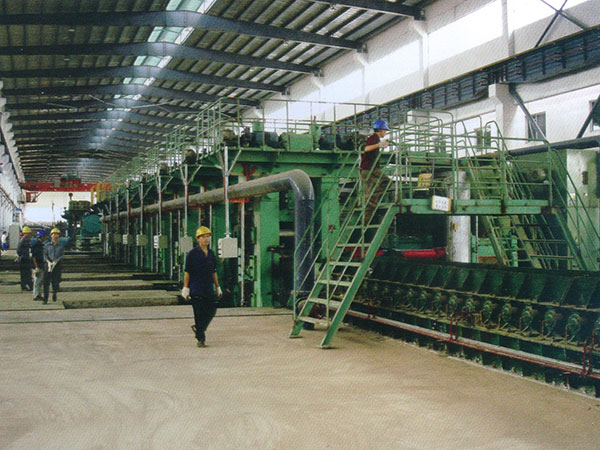

連續式酸洗生產線 Continuous Pickling Line

連續式酸洗是帶鋼連續的通過盛有酸溶液的酸洗槽及清洗槽。它具有酸洗效率較高，產量大，耗電少等特點。該機組適于年產為60-100萬噸的生產。

Continuous Pickling is a production line that the steel strip is pulled continuously through the acid tank and rinsing tank.The line is characteristic with high efficiency and output and low electric consumption.The annual yield or the line is 600.000-1,000,000 tons.

工藝流程 Production Process

鋼卷準備站—鋼卷小車—開卷機—夾送矯直機― 剪刀—焊接機—1#張緊輥—入口活套—前張力機 —破鱗機—后張力機—酸洗—冰水刷洗—熱水洗 斗烘干—2#張緊輥—出口活套—3#張緊輥—控制 輥—沖切剪葉圓盤邊剪—進料機—4#張緊棍—涂 油機一夾送機一卷取機—卸卷小車

Coil Prepare Station→Coil Car→Pay-off Reel→Pinch Straightener→Cutting Shear→Welder→1#Bridle Roll→Entry Accummulator→Front Tension Reel→Descaler→Back Tension Reel→Pickling→Ice Water Clean→Hot Water Clean→Dryer→2#Bridle Roll→Exit Accummulator→Bridle Roll→Control Roll→Cutting Shear→Disc Shear→Feeder→4#Bridle Roll→Oiler→Pinch Roll→Tension Roll→Unloading Car

工藝參數 Technical parameters
